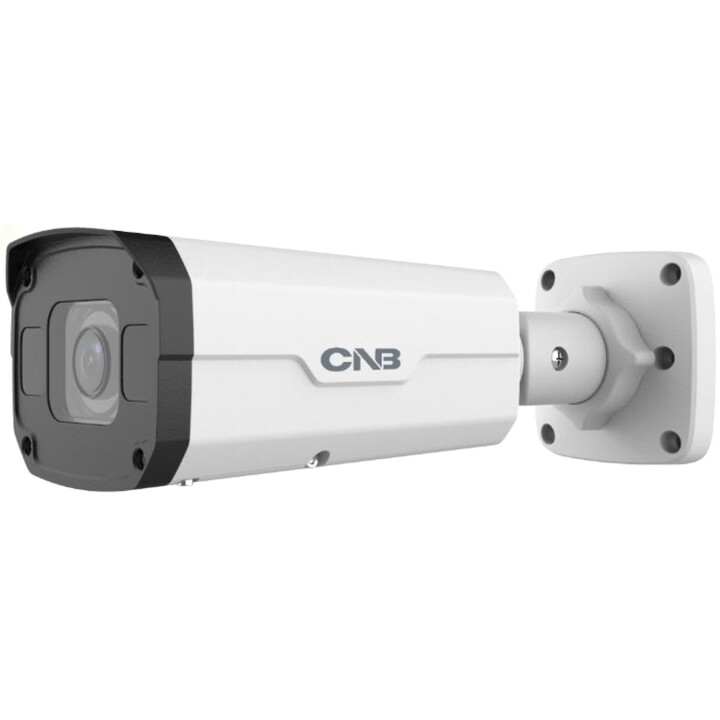

CNB-TBN45R-W (2.8-12) 4MP IP Camera, Built-in IR illuminator with 50m distance

Compatible with H.265+, H.265, H.264 and MJPEG

Smart Intelligent Function included

Optical WDR of up to 120dB

IR distance reaching up to 50m

2D/3D DNR

Accepts Micro SD cards of up to 512GB

9:16 Corridor Mode supported

Microphone built in

Operates across a wide temperature range: -30°C to 60°C

Wide voltage range of DC 12V±25%

PoE power supply supported

IP67 rated

• Camera Sensor: 1/3", 4 megapixel, progressive scan CMOS
• Lens: 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
• DORI Distance: Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
• 2.8: 63 25.2 12.6 6.3
• 12: 270 108 54 27
• Angle of View (H): 102.79°~ 30.86°
• Angle of View (V): 54.50°~ 17.49°
• Angle of View (O): 106.94°~35.49°
• Shutter: Auto/Manual, 1 ~ 1/100000s
• Min. Illumination: Colour: 0.003 Lux (F1.6, AGC ON) 0 Lux with IR
• Day/Night: IR-cut filter with auto switch (ICR)
• Digital noise reduction: 2D / 3D DNR
• S/N: >56 dB
• IR Range: Up to 50m (164ft) IR range
• WDR: 120dB
• Video Video Compression: H.265+, H.265, H.264, MJPEG
• H.264 code profile: Baseline profile, Main profile, High profile
• Frame Rate: Main Stream: 4MP (2688*1520)/Max 25fps, 4MP (2560*1440)/Max 25fps, 3MP (2304*1296)/Max 30fps, 1080P (1920*1080)/Max 30fps Sub Stream: 720P (1280*720)/Max 30fps, D1 (720*576)/Max 30fps, 640*360/Max 30fps, 2CIF (704*288)/Max 30fps, CIF (352*288)/Max 30fps
• HLC: Supported
• BLC: Supported
• ROI: Up to 8 OSDs
• Motion Detection: Up to 4 areas
• OSD: Up to 4 OSDs
• Privacy Mask: Up to 4 areas
• Audio Audio Compression: G.711
• Suppression: Supported
• Sampling Rate: 8KHZ
• Storage Edge Storage: Micro SD, up to 256GB
• Network Storage: ANR,NAS(NFS)
• Interface Network: 10/100M Base-TX Ethernet
• Built-in Mic: Supported
• Network Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL, SNMP
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API
• General Power: DC 12V±25%, PoE (IEEE 802.3af)
• Power consumption: Max 8.5W Dimensions (L × W × H): 206 × 74 × 74mm (8.1” × 2.9” × 2.9”)
• Weight: 0.55kg (1.2lb)
• Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Surge Protection: 6KV
• Ingress Protection: IP67
