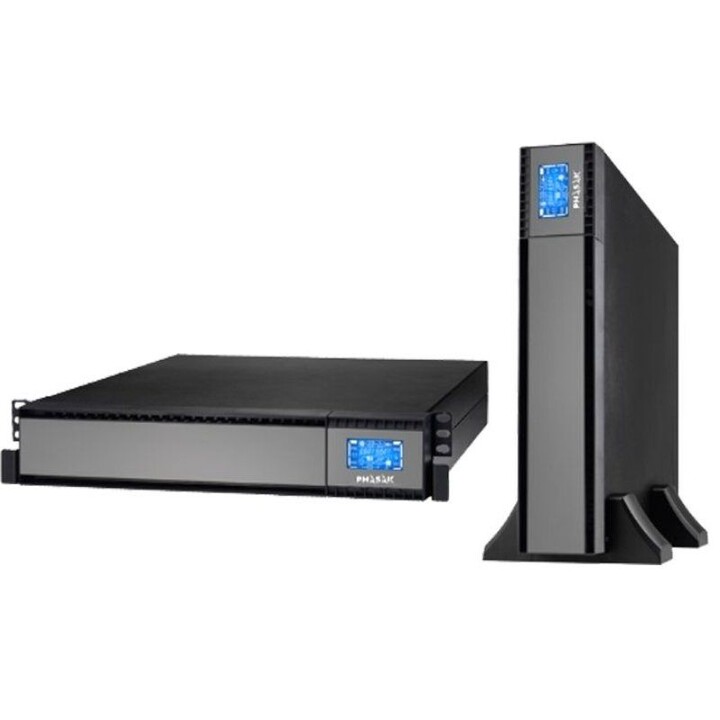

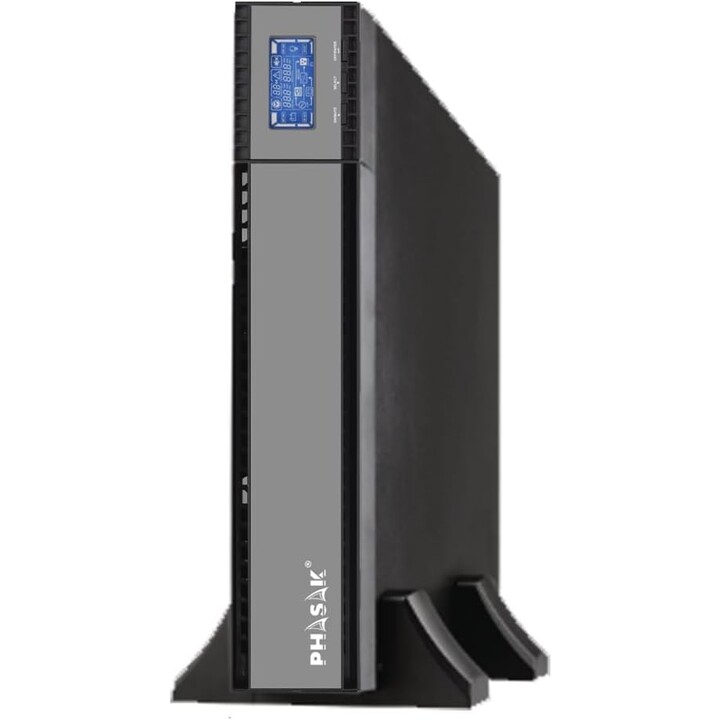

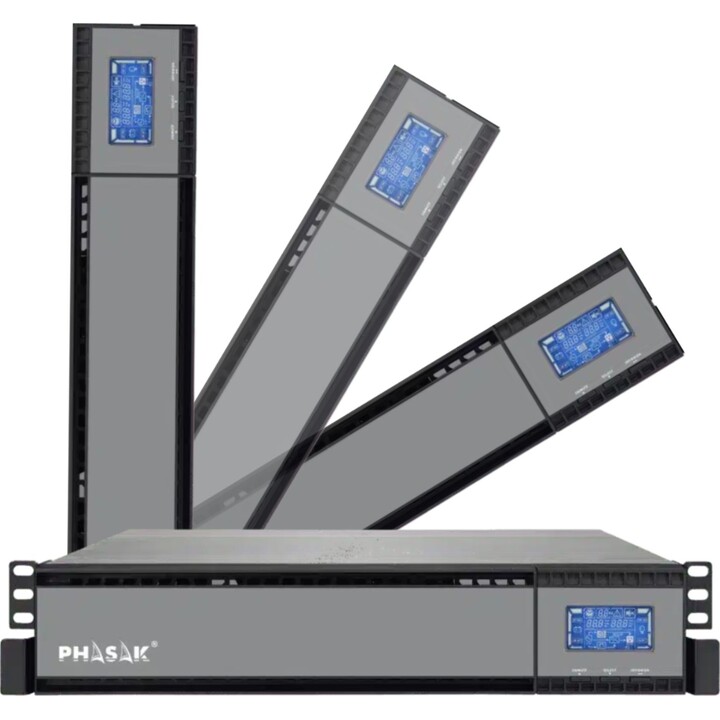

UPS Online Phasak Rack 3000 VA Online LCD/ 3000VA-2700W/ 8 Outputs/ Rack Format

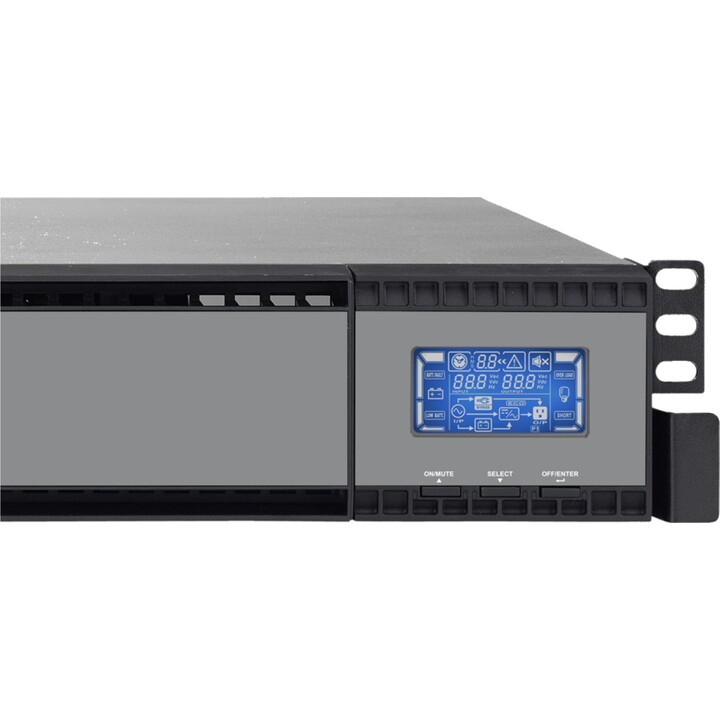

The Phasak Online Rack LCD series incorporates Real Single-Phase Double Conversion Online technology and allows the installation of external battery banks in all its references. It has protected RJ45 sockets, which will offer protection against surges and electrical noise for your telephone / ADSL / Ethernet connection. Available in powers of 1,000, 1,500, 2,000, 3,000, 6,000 and 10,000 VA. The LCD screen provides real-time information on the voltage measurements at the input and output of the UPS, as well as information on the autonomy time or current battery charging capacity, among other relevant data. The management and control of the UPS can be carried out through the USB/SNMP interface that incorporates the HID protocol that allows the configuration of parameters and the shutdown of its systems on site or remotely. The VIEWPOWER software provided allows the monitoring and management of files for Windows, Linux and Mac. Equipment especially recommended for the use of Business IT Networks, telecommunications systems, industrial automation equipment, emergency installations or for the protection of dedicated lines. Critical applications: Industrial, public, pumps or electric motors, etc.

• Specifications
• Values
• Power:3000VA
• Maximum capacity supported: 2700 W
• Minimum input voltage in AC: 110 V
• Rated output voltage in AC: 230 V
• Maximum input voltage in AC: 300 V
• Frequency range: 40 – 60 Hz
• Power factor:0.9
• Wave type: Pure sine wave
• Battery type:12V 9Ah
• Number of batteries:6
• Charge current: 1000mA
• Charging voltage: 82.1V
• Dimensions: 633 x 438 x 88mm
• Weight: 29 Kg
• Noise level: less than 55dB
