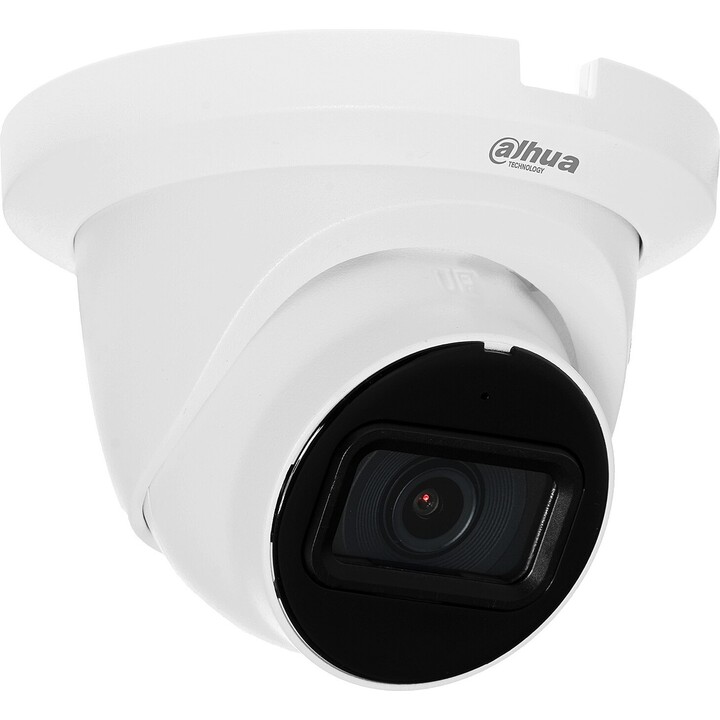

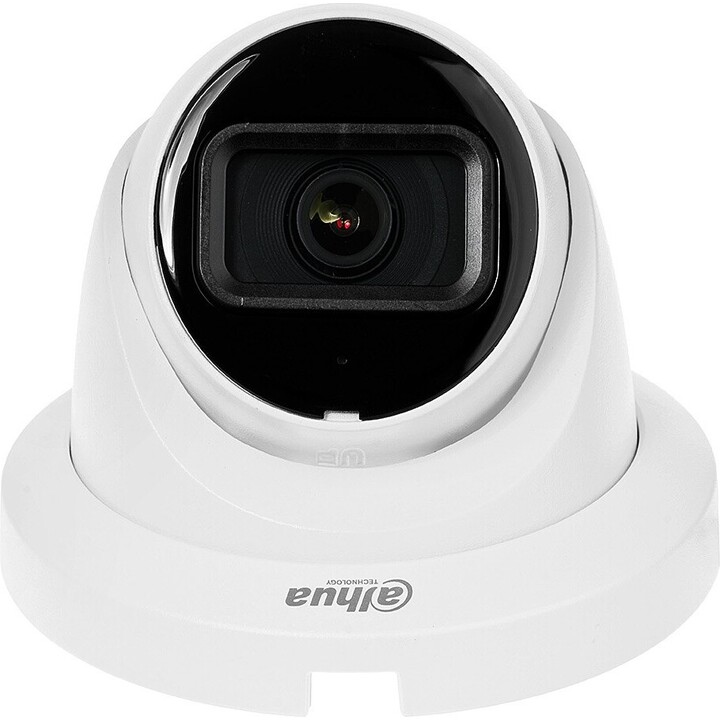

Dahua Technology Lite HAC-HDW1231TLMQ-A-0280B surveillance camera Pad Outdoor IP security camera 1920 x 1080 Pixel

Description

Dahua Technology Lite HAC-HDW1231TLMQ-A-0280B Surveillance Camera Pad Outdoor IP Security Camera 1920 x 1080 Pixels Ceiling/Wall/Pole

Dahua Technology Lite HAC-HDW1231TLMQ-A-0280B, IP Security Camera, Outdoor, Wired, Ceiling/Wall/Pole, White, Pad

Key product points

Outdoor IP Security Camera

CMOS 25.4 / 2.8 mm (1 / 2.8") 2 MP 1920 x 1080 pixels

Wired

Ceiling/Wall/Pole Pad

IP67

White

280 g

Performance

Type: IP Security Camera

Supported placement: Outdoor

Connectivity Technology: Wired

Wide Dynamic Range (WDR): Yes

Day/Night Mode: Yes

Design

Form Factor: Pad

Mounting Type: Ceiling/Wall/Pole

Product color: White

Housing material: Metal, Plastic

IP (International Protection) Code: IP67

Camera

Camera pan control: Yes

Camera Tilt Control: Yes

Rotation angle: 360 Ω

Lens angle of view, horizontal: 107 Ω

Lens angle of view, vertical: 56 Ω

Lens angle of view, diagonal: 127 Ω

Tilt angle: 0 - 78 Ω

Tray range: 0 - 360 Ω

White balance: Auto

Camera shutter type: Electronic

Image sensor

Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")

Sensor type: CMOS

Number of effective pixels (A x V): 1920 x 1080 Pixels

Lens system

Detection distance: 43.9 m

Observation distance: 17.5 m

Recognition distance: 8.8 m

Maximum aperture: 1.6

Identification distance: 4.4 m

Fixed focal length: 2.8 mm

Closest focusing distance: 0.7 m

Video

Maximum resolution: 1920 x 1080 pixels

Total megapixels: 2 MP

Supported graphics formats: 960 x 480, 960 x 576, 1920 x 1080 (HD 1080)

Supported video format: 480p, 576p, 1080p

Frame rate: 30 fps

Analog signal: NTSC, PAL

Noise reduction: Yes

Noise reduction technology: 3D noise reduction

Gain Control Type: Automatic/Manual

Privacy Mask: Yes

Backlight Compensation (BLC): Yes

High Beam Compensation (HLC): Yes

Smart IR: Yes

Audio

Audio input channels: 1.0 channels

Signal-to-noise ratio (SNR): 65 dB

Built-in microphone: Yes

Connection

Ethernet: No

Wifi: No

Bluetooth: No

Storage media

Built-in HDD: No

Ports and Interfaces

BNC output ports: 1

DC input jack: Yes

Security

Mirror: Yes

Power control

Power supply: DC

Power consumption (max): 3.1 W

DC output voltage: 12

Environmental conditions

Operating temperature range: -40 - 60°C

Storage temperature range: -40 - 60 °C

Weight and dimensions

Height: 88.1 mm

Diameter: 11 cm

Weight: 280 g

Packaging

Package weight: 450 g

Package contents

Number of cameras: 1

User Manual: Yes
