LMP USB-C DuoDock powerful 9-port docking station with NVMe storage

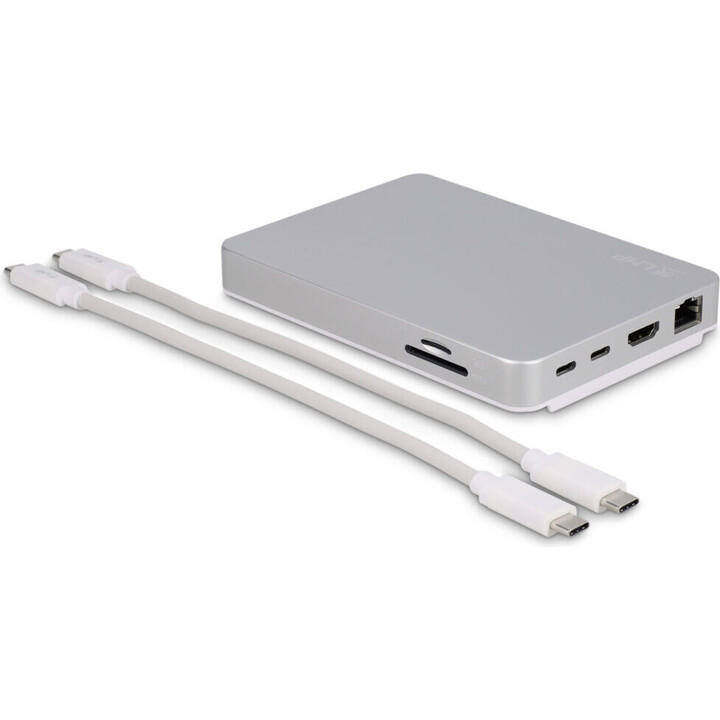

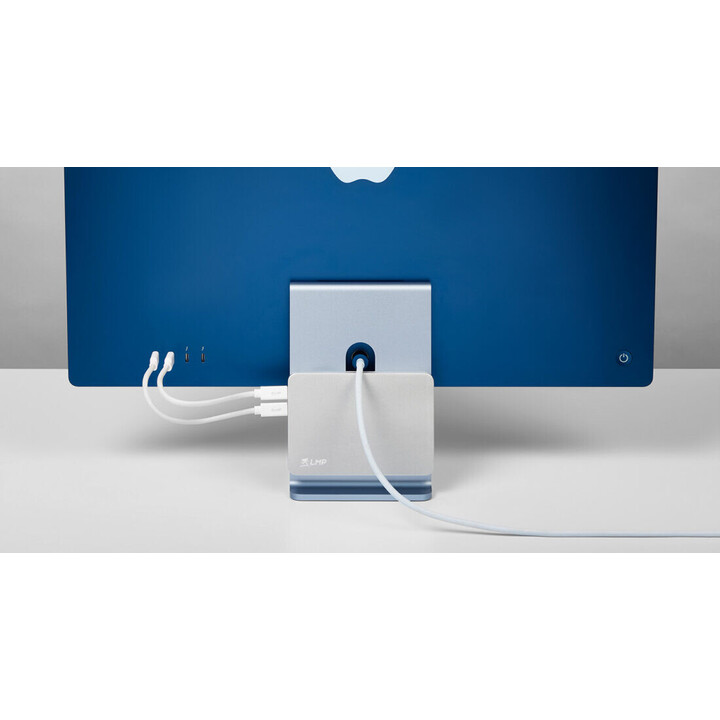

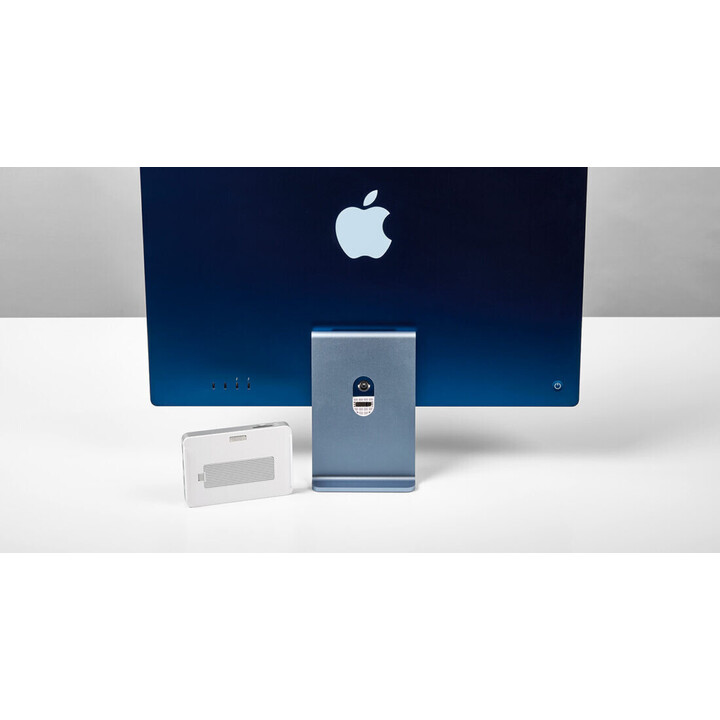

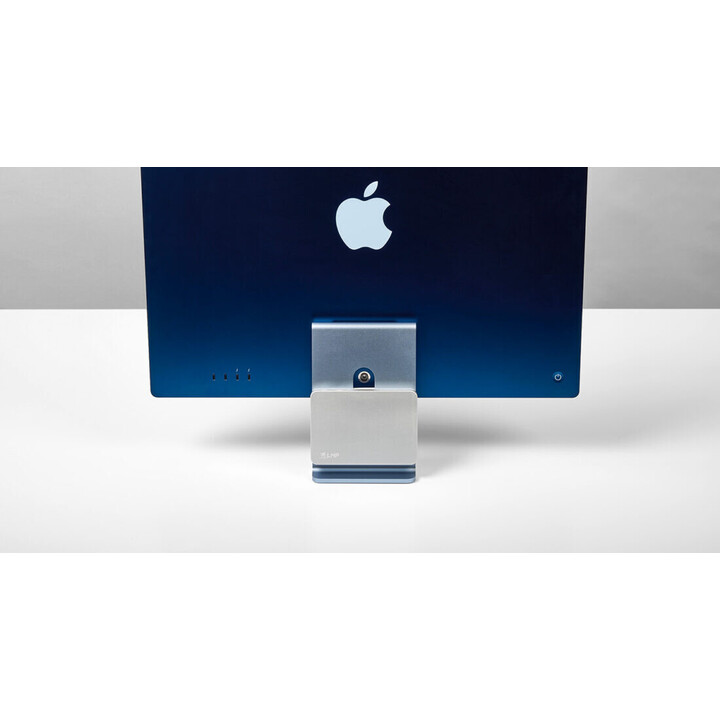

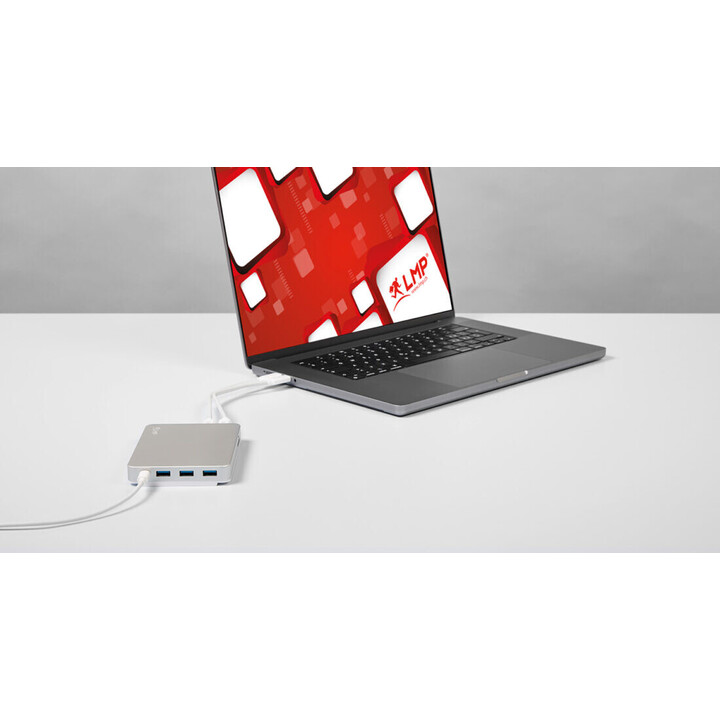

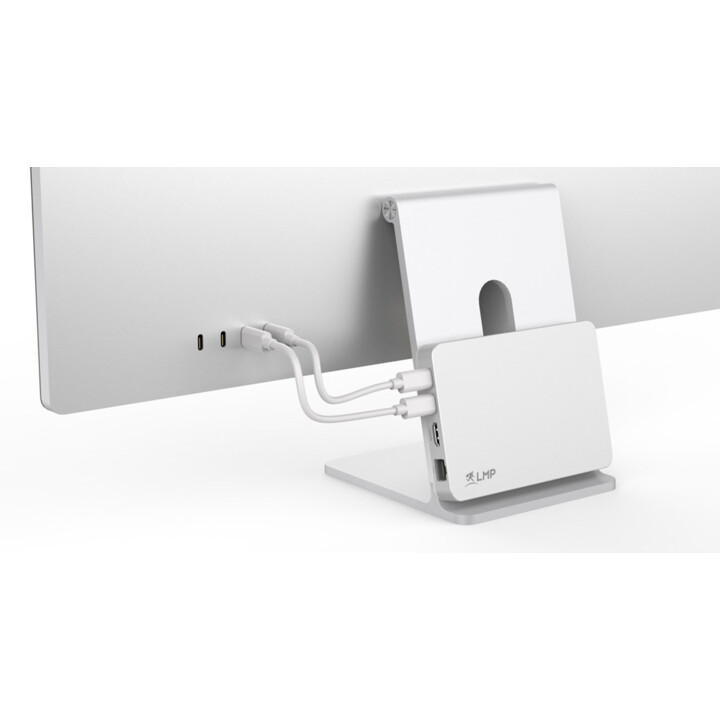

The LMP USB-C DuoDock combines dock with storage functionality in a elegant aluminum housing. The DuoDock can be mounted on the base of the iMac 24" M1 (2021) with a magnetic clip or used as a stand-alone dock on any Mac. The connection to the host runs via two USB-C cables - one for the dock functions and one for the data transfer to the NVMe SSD.

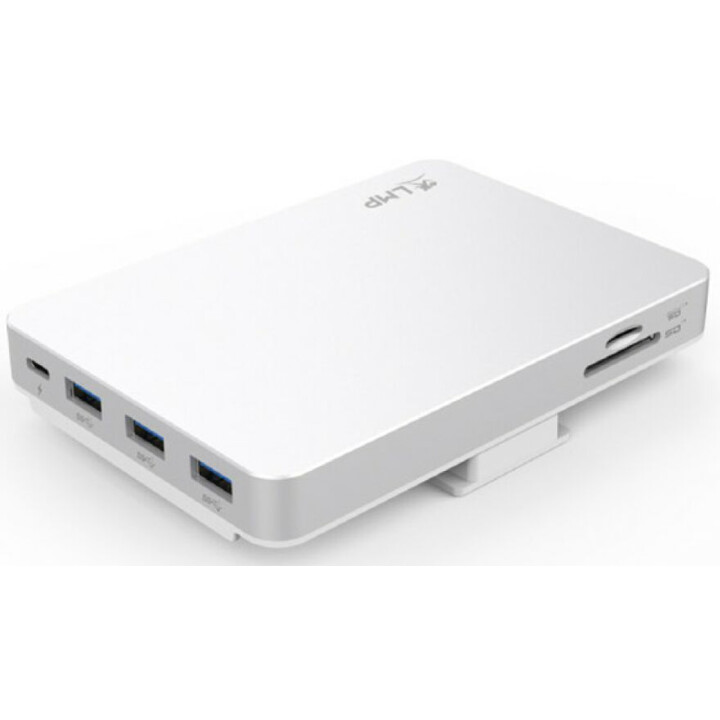

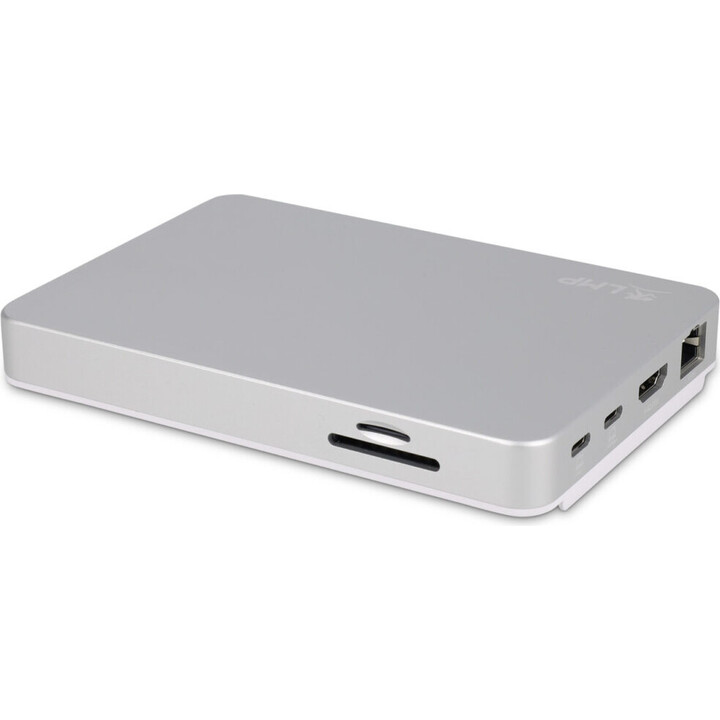

The dock offers a total of 9 ports including the slot for the M.2 PCIe NVMe SSD: 3x USB-A, 1x USB-C, 1x HDMI 2.0, 1x Gigabit Ethernet as well as one SD and one microSD card reader. The host can be powered via the USB-C port via Power Delivery 3.0 (up to 100 W).

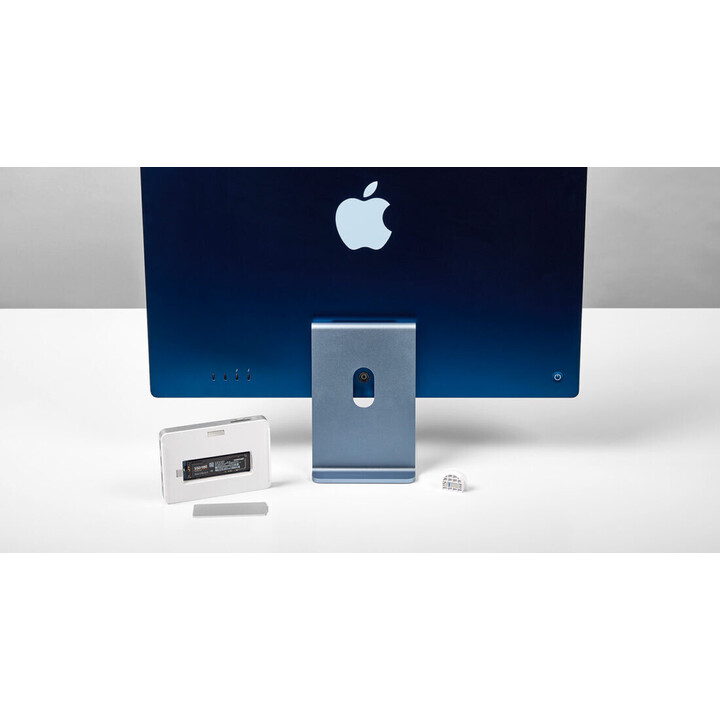

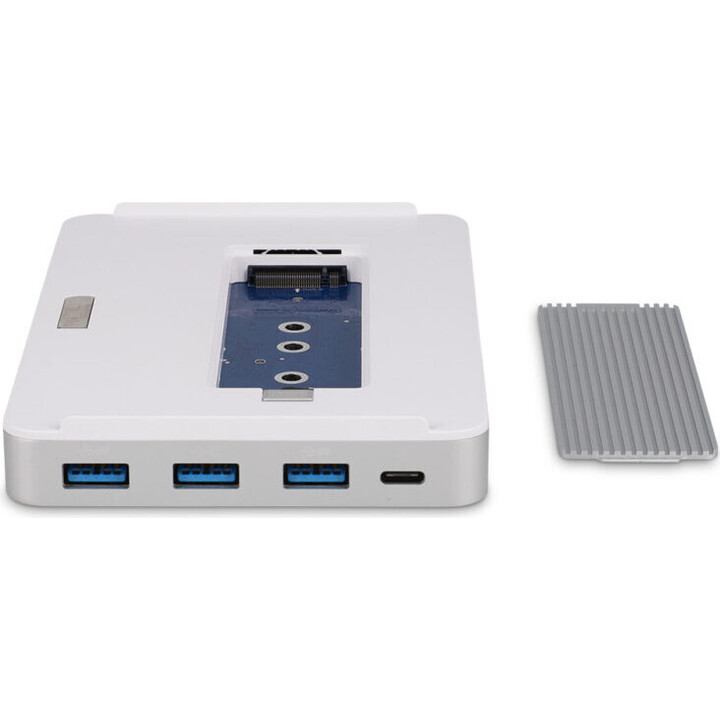

The slot for the M.2 PCIe NVMe SSD accommodates 4 different SSD sizes: 2230, 2242, 2260 and 2280.
Whether connecting to peripherals or acting as lightning-fast data storage, the DuoDock does its job in duet and with elegance.

Connection type
Can be operated with single USB-C connection (dock or storage function).
2x USB-C 3.1 Gen 2 (up to 10 Gbps, up to 100 W)

Video ports
1 x HDMI (up to 4K@60 Hz)

Data ports
1x USB-C 3.1 (up to 5 Gbps, up to 100 W)
3x USB 3.0 (up to 5 Gbps)

Network ports
1x Gigabit Ethernet (10/100/1000 Mbps)

Card reader
1x microSD card reader
1x SD (UHS-II) card reader

Transfer rate
USB 3.1 Gen 2 (up to 10 Gbps)

Compatibility
M.2 PCIe NVMe SSD 2230 (22 x 30 mm), 2242 (22 x 42 mm), 2260 (22 x 60 mm), 2280 (22 x 80 mm)
