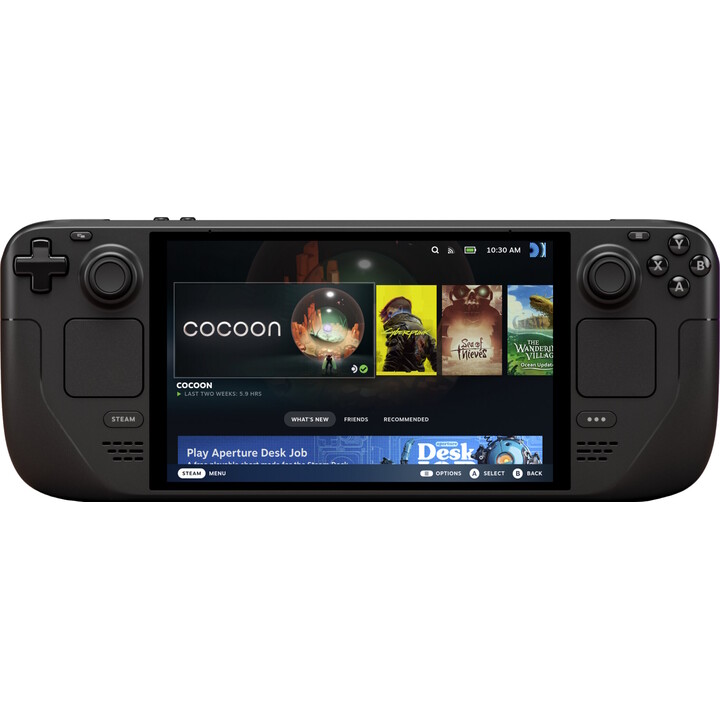

Steam Deck OLED 512GB NVMe Black - Portable Console

Steam Deck OLED 512GB NVMe RAM 16GB LPDDR5 RAM, 6nm AMD APU, 50Wh Battery and 6E Tri-band Wi-Fi

7.4-inch OLED HDR display - 1280 800 RGB resolution - 50 Wh battery - microSD - DisplayPort - Arch-based operating system and KDE Plasma desktop - AMD 6nAMDPU - 16GB LPDDR5 RAM - 512GB NVMe SSD - Analogue Touch Sticks - Haptic Feedback - Trackpads - Bluetooth 5.3 - 6E Tri-band Wi-Fi - 45W USB Type-C PD3.0

The Steam Deck OLED console features a powerful 6nm AMD APU, fusing a 4-core/8-thread Zen 2 CPU and an RDNA 2 GPU with 8 compute units. With a 7.4-inch OLED HDR display, 16GB of LPDDR5 RAM, 512GB NVMe SSD storage, and controls designed for perfection, the Steam Deck deliversa high-end gaming experience. It is built with energy efficiency in its APU, state-of-the-art connectivity and versatility in its compact design, powered by a 45W USB Type-C PD3.0 PD3.0 power supply.

AMD 6nm APU with 4-core/8-thread Zen 2 CPU

At the core of the Steam Deck OLED resides a 6nm AMD APU, fusing a 4-core/8-thread Zen 2 CPU, with a variable clock speed of 2.4 to 3.5 GHz, capable of up to 448 GFLOPS FP32. Complementing this powerful processing unit, the RDNA 2 GPU with 8 compute units, operating at 1.6 GHz(1.6 TFLOPS FP32), takes graphics performance to exceptional levels. All this, with APU power consumption ranging from 4W to 15W, demonstrating power efficiency that contributes to battery life.

16GB RAM and 512GB NVMe SSD Storage

The Steam Deck OLED doesn't skimp on memory resources, incorporating 16GB of integrated LPDDR5 RAM . This 32-bit, 6400 MT/s quad-channel memory ensures smooth and efficient execution of the most demanding games. In terms of storage, the models offer generous options, combined with e, 1TB 512 NVMe SSD.

Analogue sticks with square trackpads

The Steam Deck OLED controls have been designed to provide a complete gaming experience. From A, B, X, and Y buttons, to a crosshead, L and R analog triggers , and L and R front buttons, every detail has been considered.The 4 assignable grip buttons stand out, allowing for optimal customisation. Full-size analogue sticks with capacitive touch offer precise feedback, while high-definition haptic feedback and 32.5mm square trackpads with haptic feedback add an extra layer of versatility and precision.

1280?800 RGB OLED HDR technology

The centrepiece of theSteam Deck OLED is its impressive 7.4-inch OLED HDR display with 1280 800 RGB resolution. This display provides vibrant colours, rich blacks and stunning contrast, delivering an immersive viewing experience. Additionally, with a maximum brightness of 1000 nits in HDR mode and 600 nits in SDR mode , this display ensures optimal visibility in various lighting conditions.

Next Generation Connectivity

Bluetooth 5.3 enables compatibility with remotes, accessories and audio, while the dedicated Bluetooth antenna ensures a stable connection. The presence of 6E tri-band Wi-Fi offers fast and efficient connectivity, enabling downloads up to 3 times faster than previous models. On the audio side, the console offers a stereo system with integrated DSP for an immersive sound experience, backed by a dual microphone array and a 3.5mm stereo headphone/headset jack.

45W USB Type-C PD3.0 USB Type-C PD3.0 Power Supply

Featuring a 45W USB Type-C PD3.0 USB Type-C PD3.0 power supply and a 50Wh battery , the Steam Deck OLED promises gaming sessions ranging from 3 to 12 hours, depending on content. The console features microSD expansion options with support for SD, SDXC and SDHC, as well as external connectivity for controllers and displays via DisplayPort over USB-C.

SteamOS 3 Portable Console

Equipped with the SteamOS 3 operating system based on Arch and the KDE Plasma desktop, the console offers an optimised interface for an intuitive user experience. In addition to this, the compact design of the Steam Deck OLED, with compact dimensions and a weight of approximately 640 grams, makes it an ideal portable companion.

Technical Specifications Steam Deck OLED 1TB NVMe Black - Portable Console:

• Brand: Steam
• Model: Deck OLED
• Display:
  • Dimensions: 7.4 diagonal
  • Type: OLED HDR display
  • Resolution: 1280 x 800 px
  • Brightness: 1000 nits (maximum)/600 nits (SDR)
  • Contrast Ratio: > 1000000:1
  • Colour gamut: 110% P3
  • Refresh rate: Up to 90 Hz
  • Response time: <0.1 ms
  • Touchscreen
  • Ambient light sensor
• Processor:
  • Processor: AMD 6mm APU
    • CPU: 4-core/8-thread Zen 2, 2.4 - 3.5 GHz (up to 448 GFLOPS P32)
    • GPU: RDNA 2 with 8 compute units, 1.0 - 1.6 GHz (up to 1.6 TFLOPS FP32)
    • APU power consumption: 4-15W
  • RAM: 16GB of integrated LPDDR5 RAM (four 32-bit channels, 6400 MT/s)
  • Storage: 512GB high-speed NVMe SSD (PCIe Gen 3 x4)
  • Operating system: SteamOS 3.0 (Arch-based)
  • KDE Plasma desktop
• Connectivity:
  • Bluetooth v5.3
  • WiFi: Tri-band 6E, 2.4GHz/5GHz/6GHz, 2x2 MIMO, IEEE 802.11 a/b/g/n/ac/ax
• Audio:
  • Stereo with integrated DSP
  • Dual matrix microphone
  • 3.5mm stereo headphone jack input
  • Digital Audio: Multi-channel audio via DisplayPort over USB Type-C or Bluetooth v5.0
• Controls and inputs:
  • Remote controls:
    • A, B, X, Y buttons
    • Crosshair
    • Analog L and R triggers
    • Front L and R buttons
    • View and Menu buttons
    • 4 assignable grip buttons
  • Analogue sticks: 2 full-size analogue sticks with capacitive touch
  • Haptic feedback: High definition
  • Trackpads: 2 x 32.5 mm square trackpads with haptic feedback, pressure sensitivity for configurable click force
  • Gyroscope: 6-axis IMU
• Edition features:
  • Exclusive Steam Community profile lot
  • Virtual keyboard with exclusive theme
• Interface:
  • 1 x UHS-I microSD card slot compatible with SD, SDXC and SDHC
  • 1 x USB Type-C compatible with DisplayPort 1.4 alternative mode
  • 1 x USB 3.2 Gen 2
• Power supply:
  • 45W USB Type-C PD3.0 USB Type-C PD3.0 power supply
  • 50 Wh battery
  • Usage time: 3 to 12 hours of play time
• Dimensions: 298 x 117 x 49 mm
• Weight: 640 grams
• Colour: Black

Box contents:

• 1 x Steam Deck OLED 1TB NVMe Black - Portable Console
• 1 x 45W Charger + EU Adapter
• 1 x Carrying Case
• 1 x Steam Profile Pack
• 1 x User Manual
