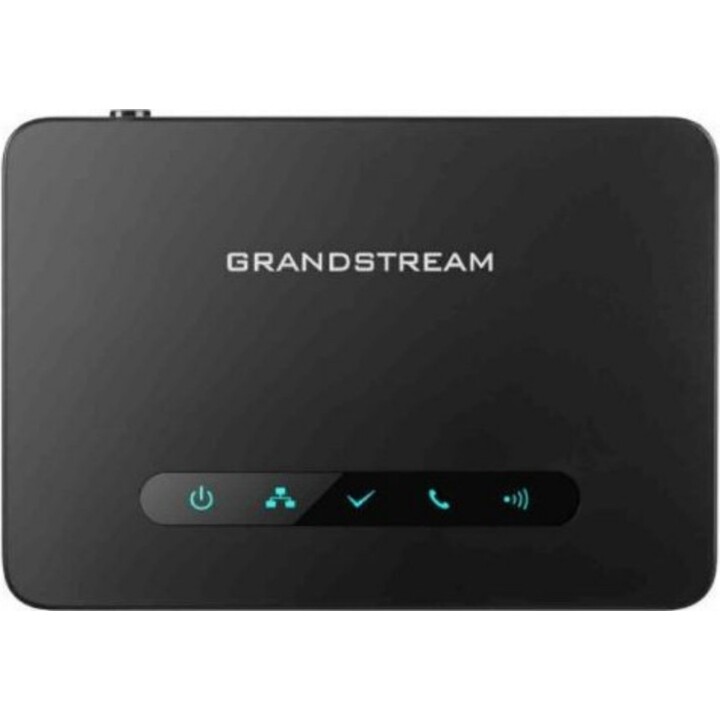

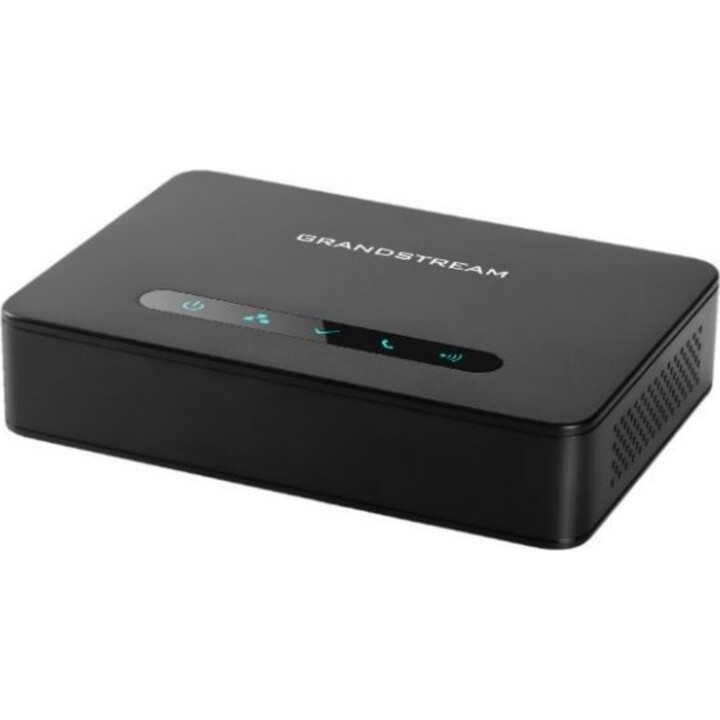

Grandstream DP760 Repeater

Grandstream DP760

Long-range DECT repeater for the DP750 base station

The DP760 is a powerful wideband DECT repeater (wireless relay station) that automatically pairs with the Grandstream DP750 DECT base station, offering greater mobility for business and residential users. The DP760 extends an additional range of 300 meters outdoors and 50 meters indoors, giving users the freedom to stay active at home or at the workplace. This allows the paired solution to have a range of up to 600 meters outdoors and 100 meters indoors.

This Wideband DECT Repeater relays up to two simultaneous HD calls. The Ethernet connection provides PoE for convenient installation and a variety of remote functions, including provisioning, status monitoring, and repeater firmware updates. When paired with the Grandstream DP750 DECT VoIP base station and DP720 extension handsets, the DP760 offers a powerful extended DECT solution for users looking to add coverage to their DECT VoIP system.

Features:

Air Interface

Telephony standards: DECT EN 301 406:2001 / DECT GAP TBR22 EN 300 444:2001 / DECT WRS EN 300 700 / CAT-iq TS 102 527

Frequency bands: 1880 - 1900 MHz (Europe), 1920 - 1930 MHz (USA), 1910 - 1920 MHz (Brazil)

Number of channels: 10 (Europe), 5 (USA, Brazil)

Range: up to 300 meters outdoors and 50 meters indoors

Peripherals

5 LED indicators: Power, Network, Association, Activity, DECT signal strength Reset button, unpair button

One 10/100 Mbps auto-sensing Ethernet port with integrated PoE

Protocols/Standards

TCP/IP/UDP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, PPPoE, SSH, TFTP, NTP, LLDP-MED, UPnP

Voice Codecs

G.722 codec for HD audio and G.726 codec for narrowband audio

Plug-n-Play Telephony Features

Automatic pairing, automatic region detection, and seamless call forwarding

Security:

User and administrator level access control, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, HTTPS, 802.1x media access control

Multilanguage

Arabic, Simplified Chinese, Traditional Chinese, Czech, Dutch, English, French, German, Hebrew, Italian, Japanese, Korean, Polish, Portuguese, Russian, Serbian, Slovak, Spanish, Swedish, Turkish

Update/Provisioning

Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using AES-encrypted XML configuration file

Association

Up to 5 repeaters in star topology

Relays up to 2 simultaneous HD calls

Automatic or manual base station association

Clean power and energy efficiency

Universal power supply, AC input 100-240V 50/60Hz; 5VDC 1A output; Micro-USB connection; Micro

PoE: IEEE802.3af Class 1, 0.44W-3.84W

Package contents:

Repeater, Universal Power Supply; Ethernet Cable; Quick Start Guide; General Public License Statement

Dimensions (height x width x diameter)

28.5 x 130 x 90 mm

Repeater Weight

: 143 g; Universal power supply: 50 g; Packaging: 360 360

Temperature and Humidity

Operating: -10° to 50°C (14° to 122°F); Storage: -20° to 60°C (-4° to 140°F)

Humidity: 10% to 90% non-condensing

FCC Compliance

: FCC Part 15B, FCC Part 15D, MPE

CE: EN 60950-1, EN 301 489-1, EN 301 489-6, EN 301 406, EN 50385, EN 55032, EN 55024, EN 61000-3-2, EN 61000-3-3

RCM: AS/NZS 60950.1

ANATEL
