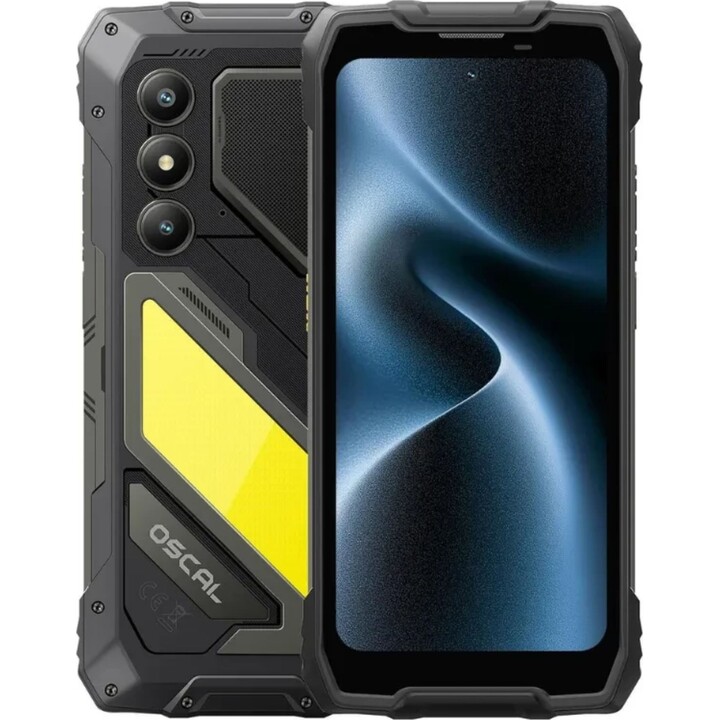

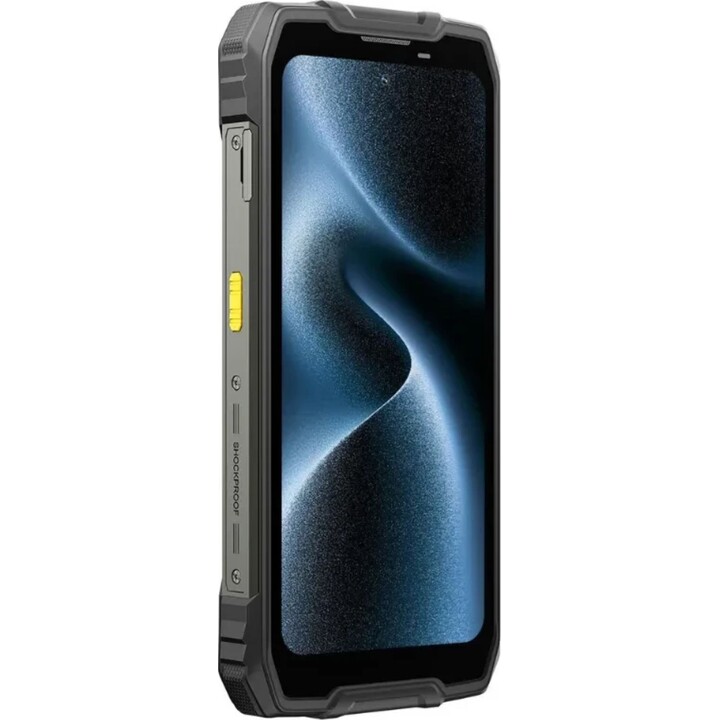

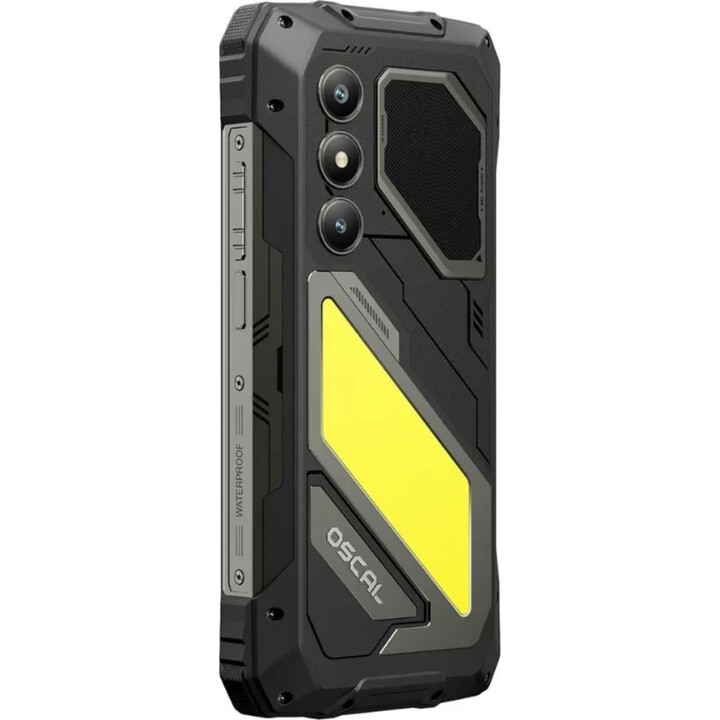

Oscal Pilot 5 5G, 8GB 256GB, 6.67 IPS, 15000mAh, Black

Reference: OSCAL-PILOT5-BLACKYELLOW
EAN: 6931548326144
Condition: New
Price: €229.00
The Oscal Pilot 5 5G is a rugged smartphone designed for extreme environments, featuring a powerful 140 dB speaker, 410 lm torch with SOS mode, and a massive 15000 mAh battery with 33W fast charging. It sports a 6.67-inch HD+ IPS display with 120 Hz refresh rate, 8GB RAM, 256GB storage expandable up to 2TB, and a Unisoc T8100 processor. Certified IP68, IP69K, and MIL-STD-810H, it supports 5G, WiFi 6, NFC, and runs on Doke OS 5.0 based on Android 16.
Product availability: Out-of-Stock
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Oscal Pilot 5

Versatile device featuring a rugged, outdoor-ready design, powerful 140 dB speakerphone ideal for noisy environments and 410 lm torch with a range of up to 30 metres. It is powered by a Unisoc T8100 processor supporting 5G connectivity accompanied by 8GB of RAM and 256GB of expandable internal storage.

Powerful 5W speaker and camping torch

Designed for extreme or very noisy environments, the built-in speaker is 34.5 mm in size and reaches 140 dB, so it can be heard from up to 40 metres. Additionally, another useful tool for outdoor use is the torch with a range of 30 metres and an output of 410 lumens. Includes SOS mode and flashing mode.

15000 mAh battery with fast charge

Superior to previous generations, it provides approximately 10 days of typical usage without charging, with up to 40 days of standby time, 22 hours of continuous video and 33 hours of continuous web browsing. It also supports 33W fast charging for extra hours of battery life in minutes and comes with 5W reverse charging function to use the phone as a power bank.

Military-grade ruggedness

The Pilot 5 is IP68, IP69K and MIL-STD-810H certified to withstand shocks, accidental drops, dust, extreme temperatures and 1.5 metres of water for 30 minutes. It is a heavy phone (570g) due to the size of the battery and ruggedness, yet offers a secure grip even with industrial gloves or wet hands.

6.67-inch HD+ display

Protected from scratches with Corning Gorilla Glass, it offers a viewing experience with smooth transitions thanks to its 120 Hz refresh rate. In addition, brightness of up to 650 nits enables clear reading even in bright sunlight, including three visual comfort modes for prolonged use.

Unisoc T8100 processor and memory capacity

With 6nm processing, its 8 cores reach 2.2 GHz fast enough for GPS navigation, messaging and casual gaming. Its 8GB of RAM comes with expansion capability up to 32GB, essential for multitasking, and it also has 256GB storage expandable up to 2TB with TF cards.

Camera system

Thanks to the smartphone's level of water resistance, it supports underwater photo and video capture. It consists of a 16 MP main camera and a 13 MP front camera.

Connectivity and operating system

The efficient Doke OS 5.0 (Android 16) offers multiple customisation options and the integrated Google Gemini assistant. In terms of connectivity, the Pilot 5 supports 5G mobile networks, WiFi 6 and NFC with Google Pay.

Technical specifications
Design
Model OSCAL Pilot 5 (5G)
Dimensions 188.6 × 89.7 × 25.3 mm
Weight 570 g
Materials Rugged chassis (materials not specified by manufacturer)
Resistance IP68 - IP69K - Submersible up to 1.5 m (30 min) - High pressure resistance (10,000 kPa) - Extreme cold use (-30 °C)
Colours Black - Yellow
Display
Size 6.67"
Type IPS
Resolution 720 × 1604 px (HD+)
Refresh 120 Hz (AI Smart Refresh Rate)
Brightness Up to 650 nits (depending on product material)
Colour 16.7 million colours
Extras Glove Mode 3.0 - 3 modes of eye protection
Power and Hardware
Processor UNISOC T8100 (6 nm)
CPU Octa-Core - up to 2.2 GHz
GPU Arm Mali-G57
RAM 8 GB LPDDR4X
Virtual RAM Up to +24 GB (total up to 32 GB)
Storage 256 GB UFS 2.2
Expansion Up to 2 TB via TF card (microSD)
Performance (AnTuTu) 724,446 points (based on product material)
Sensors and Security
Unlock Fingerprint - Facial recognition
Navigation GPS - GLONASS - Galileo - BeiDou
Audio
Speaker Smart-K BOX Speaker - 5W - up to 140 dB - Driver 34.5 mm - SOS Siren
3.5mm Jack Not specified by manufacturer
Rear Camera
Resolution 16 MP
Modes / Extras Underwater mode (underwater camera) - Motion Photo - Google Lens
Video Not specified by manufacturer
Front camera
Resolution 13 MP
Networks and Connectivity
5G Bands: n1 - n2 - n3 - n5 - n7 - n8 - n20 - n26 - n28 - n38 - n40 - n41 - n66 - n77 - n78
4G (FDD) Bands: B1 - B2 - B3 - B4 - B5 - B7 - B8 - B12 - B17 - B19 - B20 - B26 - B28A - B28B - B66
4G (TDD) Bands: B38 - B40 - B41
3G (WCDMA) Bands: B1 - B2 - B5 - B8
2G Bands: B2 - B3 - B5 - B8
SIM 3 card slot (depending on product material): 2×SIM + 1×TF (microSD)
Wi-Fi Wi-Fi 6 (depending on product material) - IEEE 802.11 a/b/g/n/ac - Dual band 2.4 GHz / 5 GHz
Bluetooth Bluetooth 5.0
NFC Yes (compatible with Google Pay)
USB Not specified by manufacturer (charging cable included)
Battery
Capacity 15000 mAh
Fast charging 33 W
Reverse charging 5 W
Software
System Doke OS 5.0 based on Android 16
Google Services Yes
Extra features
Torch / camping light Range up to 30 m - 410 lm - 3 modes - Quick access (incl. SOS mode)
Package contents
Including 1× OSCAL Pilot 5 - 1× Charger - 1× Charging cable - 1× SIM puller pin - 1× Strap (lanyard) - 1× User Manual
