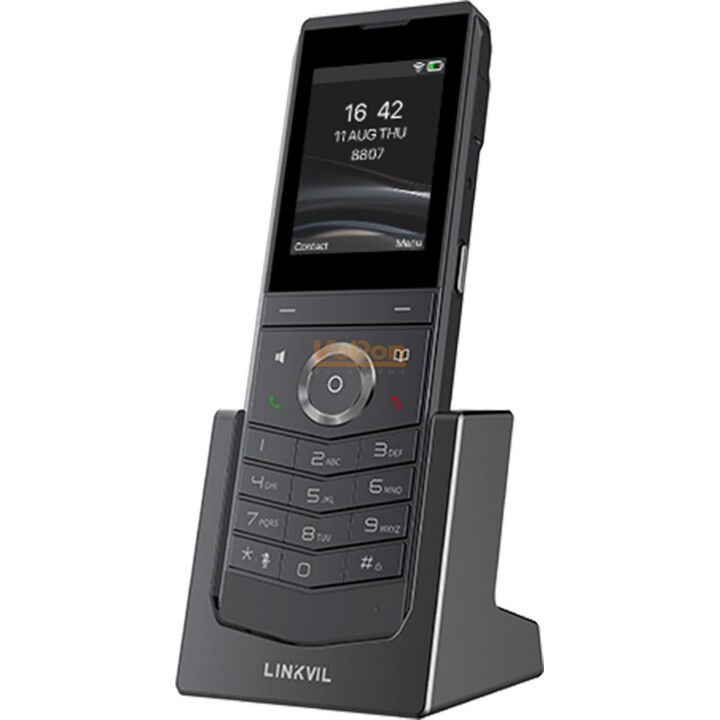

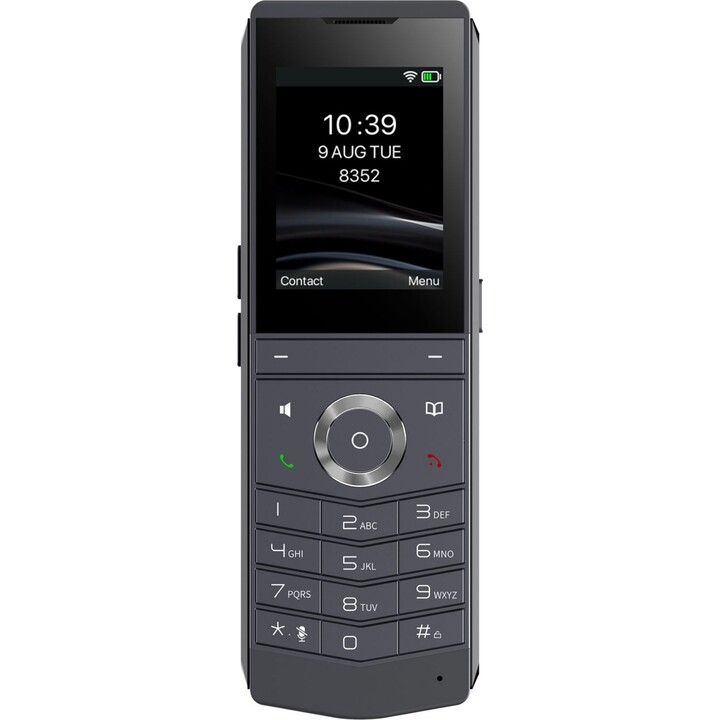

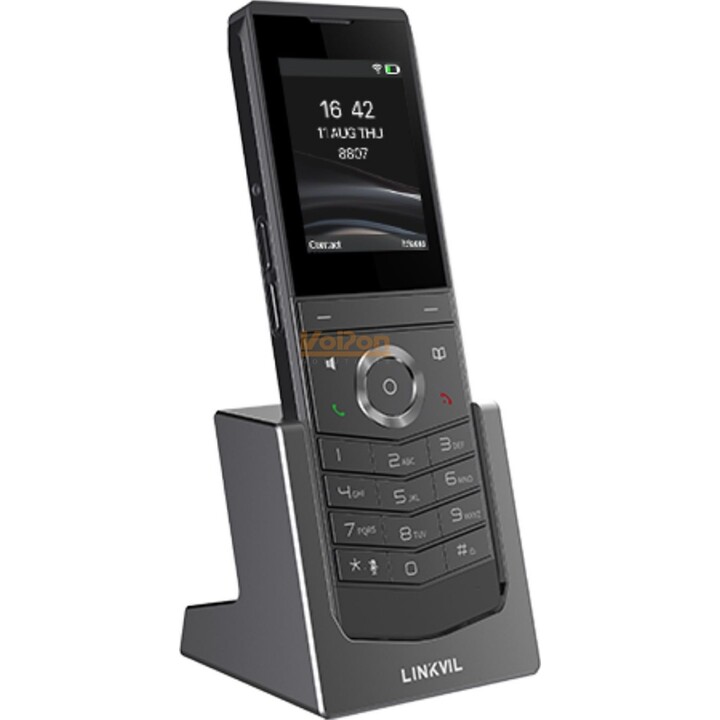

Fanvil W611W V2 Portable WiFi Phone SIP Wi-Fi - SIP - WLAN

Installed with a rechargeable 1900mAh battery, the W611W is ready for 9 hours’ talk time or 200 hours standby time. The W611W is widely used in various wireless scenarios such as enterprises, shopping malls, residential areas, hotels and warehouses, providing users with high-quality mobile communication experience.

Fanvil Linkvil W611W Technical Specifications

Generic

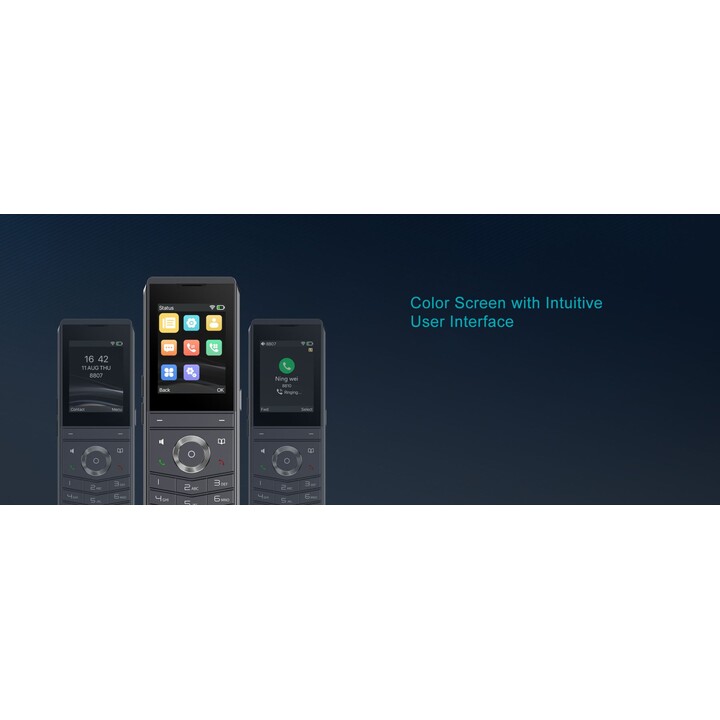

• 2.4-inch 240*320 color high-definition LCD display
• 4 SIP lines
• Caller ID
• Handset/Hands-free/Headset Mode• Support custom DSS keys
• HD Voice
• Belt clip
• Desktop charging base
• Standard type-c interface
• Rechargeable Lithium Battery
• Support Wi-Fi 6
• Support Bluetooth 5.0
• Support multi language: English/Chinese/German/French/Italian/Portuguese/Russian/Spanish

Phone Features

• Network time synchronization
• Local contacts
• Remote Phonebook (XML/LDAP, 1000 entries)
• Multi-language optional
• Call logs
• Blocked List/Allowed List
• Screen saver
• Personalized ringtone settings
• Screen backlight adjustment
• Memorandum
• SMS service
• Voicemail（MWI）
• Menu encryption settings
• Keypad lock/ backlight adjustment
• Volume adjustment

Call Features

• Auto-Answering
• Call out/Answer/Reject
• Call waiting/Switch
• Call forwarding
• Speed Dial
• Intercom
• Anonymous calls
• 3-way Conference
• Restrict outgoing calls
• IP direct dial
• Speed Dial
• Emergency call
• Caller ID Display
• Inquiry (dialing, incoming and outgoing calls)
• Do-Not-Disturb
• PTT one-key call
• Self-adaptive light-sensing screen off (during a call on the handset)

Audio

• Narrowband Codec: G.711a/u, G.729AB,iLBC
• Wideband Codec: G.722, Opus
• Acoustic Echo Cancellation (AEC)- maximum 96ms echo delay cancellation
• Voice Activity Detection（VAD）/ Comfort Noise Generation（CNG）/ Background Noise Estimation (BNE)
• Packet Loss Concealment
• Dynamic adaptive jitter cache up to 300ms
• DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIPINFO

Network

• Built-in Wi-Fi, support 802.11 a/b/g/n/ac/ax protocol: 2.4GHz IEEE 802.11 b/g/n/ax 5GHz IEEE 802.11a/n/ac/ax Encryption：WPA /WPA2-PSK，802.1XEAP
• Built-in Bluetooth 5.0 module

Power Management

• Reminder when charging
• Full reminder
• Low battery prompt
• After abnormal shutdown, the charging will automaticallystar
• Real-time statistics/display of system power

Protocols

• RTP/RTCP/SRTP
• STUN
• HCP
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Deployment and Maintenance

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCPOPT66/SIPPnP/TR-069
• Web management interface
• Web-based Packet-dump
• Configuration export/import
• Firmware upgrade
• Syslog

Physical Specifications

• Protection class: IP67
• Drop height: 1.8m
• Shell material: plastic shell, two-color injection molding
• Charging Base x1
• Belt Clip x1
• Rechargeable Battery x1 1900mAh
• DC input: 5V/2A
• Charging port: Type-c
• Headphone jack: 3.5mm standard jack
• Installation method: Belt Clip /Desktop
• Operating temperature: 0℃~ 45℃
• Storage temperature:-20℃~ 60℃
• Relative humidity:10~95%
• Product size:160*53*16mm
• Product weight：:156g
• Certificates：CE/FCC/UKCA/RoHS/SRRC
• Box size: 200*117*103mm
• Outer box size: 437*254*220mm ((8PCS)
